B&W MTT Medical Transport Tote

B&W International GmbH from Ibbenbüren is a manufacturer of special cases and bags developed in Germany with high demands on functionality and design.

In cooperation with our American partner company, which has a long-standing reputation in the use of temperature-sensitive, medical-pharmaceutical transports, an integrated solution for the distribution of COVID-19 vaccines was realized.

• Coordinated combination of insulated transport totes and high-performance PCM (phase change material) cold packs as transport solution

• Permanently stable cold chain: from the laboratory to the point of use, e.g. via mobile vaccination teams

• Up to 30 hours independence from electricity / external energy supply due to passive cooling

• Different target temperatures can be permanently guaranteed: 0 °C, -21 °C

• Advantages over use of ice, dry ice and gel accumulators, as storable, reusable, non-toxic and CO2-free

• Successfully used in laboratories, hospitals and diagnostic companies in the USA, e.g. with more than 30,000 Covid tests daily

• Can also be used as a backup solution (temporary storage, lack of space in power-dependent refrigerators, protection against power outages)

• High carrying comfort in mobile use

• Easy handling and disinfection

B&W MTT: medical transport totes in three sizes

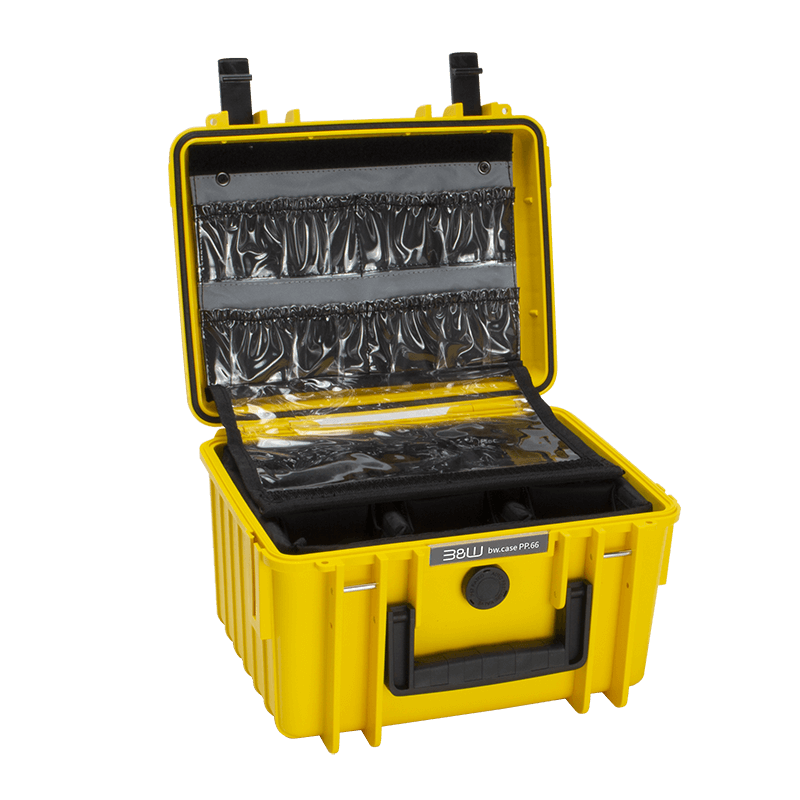

MTT Small

• external dimensions (L x W x D, inch): 14.4“ x 10“ x 14“

• interior dimensions(L x W x D, inch): 10.5“ x 6.3“ x 10“

• interior dimensions bottom(L x W, inch): 10.3“ x 6.1“

• weight: 4.3 lbs 5.3 lbs 8 lbs

• number of vaccine doses: ca. 350 vaccine doses

• cooling possibilities: PC-0 or PC-21

• Features

• Document window on front and back

• ID window on each side

• Includes shoulder strap

MTT Medium

• external dimensions(L x W x D, inch): 15.5“ x 14.4“ x 16.9“

• interior dimensions(L x W x D, inch): 10.5“ x 9.3“ x 12.1“

• interior dimensions bottom(L x W, inch): 10.4“ x 9“

• weight: 5.3 lbs

• number of vaccine doses: ca. 1,000 vaccine doses

• cooling possibilities: PC-0 or PC-21

• Features

• Document window on front and back

• ID window on each side

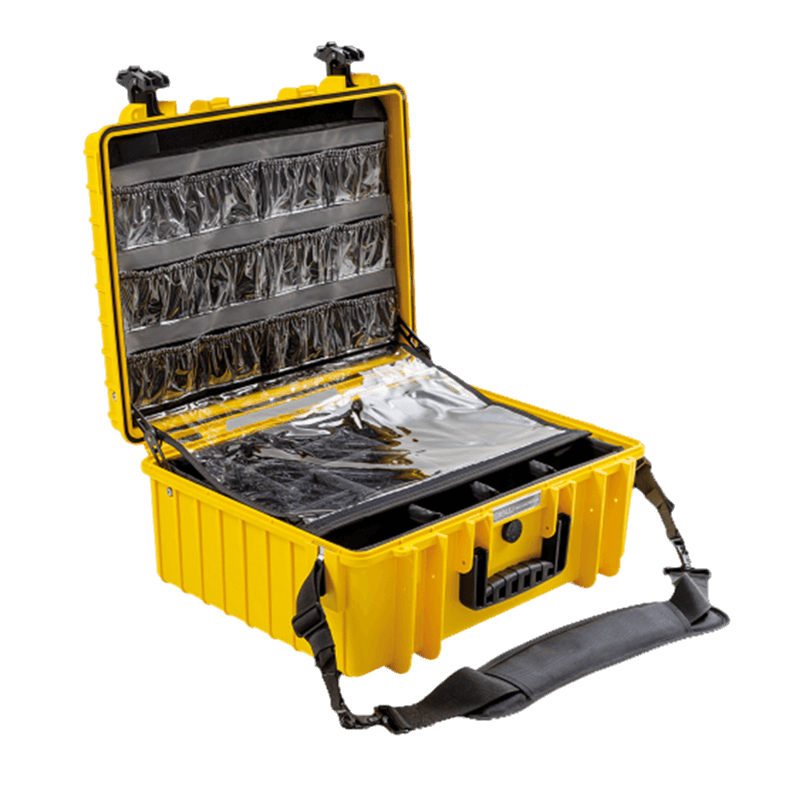

MTT Large

• external dimensions(L x W x D, inch): 22.6“ x 13“ x 14“

• interior dimensions(L x W x D, inch): 19.8“ x 10.2“ x 11.5“

• interior dimensions bottom(L x W, inch): 18.4“ x 8.8“

• weight: 8 lbs

• number of vaccine doses: ca. 2,100 vaccine doses

• cooling possibilities: PC-0 or PC-21

• Features

• Document window on front and back

• ID window on each side

• Removable insulated partition allowing for two different temperature zones

Explanation PCM

The PCMs provides specific temperatures for a variety of applications. The “phase” temperatures are the temperatures at which each product undergoes the phase change, or melting, from solid to liquid. These temperatures are 0°C and -21°C. The latent heat of each product allows all heat absorbed to be used

The shown case content is not included in the delivery.
